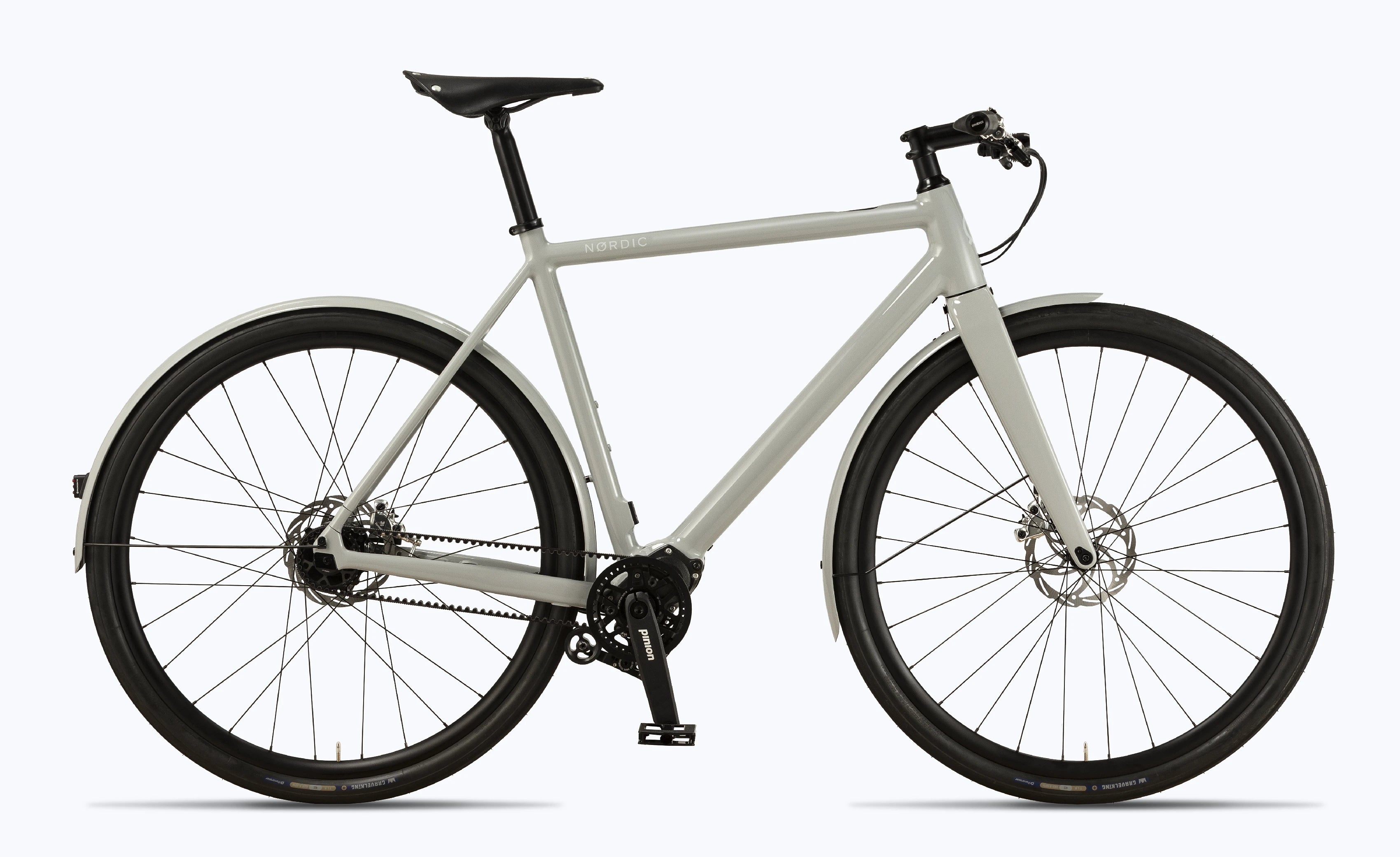

SERIES 02
PINION SMART.SHIFT C1.9i / MAHLE X20 - 65 Nm. RANGE OF 80 KM (130+ KM WITH EXTENDER). WEIGHT 15,5 KG
Want to test before you decide?
Find Test CenterVisit a Test Center - test ride, buy or lease directly at the Test Center
Delivered 98% assembled - ready to ride
14 Days Return Policy
VAT Included
Up to 5 Years Warranty
Free Shipping in EU
Choose options









Frame Design
Clean, minimalist lines. Lightweight aluminum frame with full internal cable routing and integrated front & rear lights. Designed and hand-painted in Europe.
Motor & Battery
Mahle X20 rear hub 65 Nm motor - ultra-compact, silent, and responsive.
Integrated 236 Wh battery with optional range extender (208 Wh) for up to 130+ km range.
Seamless iWoc One interface and app connectivity.
Pinion Smart.Shift C1.9i
Electronic gearbox with 9 evenly spaced gears.
Shift instantly - even at a standstill.
Automatic downshift when you stop. Maintenance-free and precise.
Wheels
Prototype rims. Sapim spokes. Panaracer Gravel King tires (40 mm).
Lightweight, fast-rolling, and suitable for both urban and light gravel use.
Cockpit
Ergonomic grips, internal cabling, and custom stem setup.
Designed for comfort on longer rides and agility in city traffic.
Three ride positions available: Relaxed, Balanced, or Sport.
Brakes & Lights
Formula Cura hydraulic disc brakes - strong, silent, and easy to modulate.
Supernova front and rear lighting fully integrated into frame and system.
Drivetrain
Gates Carbon Belt Drive - silent and maintenance-free.
Connectivity
Mahle iWoc One button with Bluetooth app integration.
Weight
15.5 kg (without accessories)
Optional Accessories
Kickstand (+39 €)
Rear carrier (+119 €)
Available Sizes
M (54 cm), L (56 cm), XL (58 cm)

SIZE FRAME |
|
M 54 |
L 56 |
XL 58 |
A |
ST length (mm) |
540 |
560 |
580 |
B |
TT horizontal (mm) |
564 |
584 |
592,5 |
C |
HT length (mm) |
120 |
150 |
175 |
D |
CS length* (mm) |
437 |
437 |
437 |
E |
HT angle (°) |
72,5 |
72,5 |
72,5 |
F |
ST angle (°) |
73,5 |
72,5 |
72,5 |
G |
Reach (mm) |
400 |
400 |
401 |
H |
Stack (mm) |
551 |
580 |
604 |
|
Stem (mm) |
80 |
90 |
100 |
|
Crank length (mm) |
170 |
170 |
170 |
Where can I test ride a Nordic bike?
You can test our bikes at select Test & Pickup Centers across Europe. Visit our 'Find a Test Center' page to locate your nearest location.
What's the delivery time?
Each Nordic bike is hand-built to order. Delivery typically takes 3 - 5 weeks, depending on your selected configuration and location.
Leasing a Nordic bike - Is it possible?
Yes. Our certified Test Centers offer leasing through local providers or employer programs - perfect if you're looking for flexible monthly payments.
Just ask your nearest Test Center. They’ll guide you through the options and help you find the best solution for your needs.
Can I buy and pay at my chosen Test Center?
Yes. You can both order and pay directly at the Test Center - simple and personal.
Is the battery removable?
No. The Mahle X20 system uses an integrated battery. However, an optional range extender is available for longer rides.
What's the range?
You can expect up to 80 km on a full charge. With the range extender, the total range is over 130 km.
Can I customize my bike?
Yes. All Nordic bikes can be configured with your choice of size, color, ride position, and accessories before purchase.
